AX7C10M/CK250E

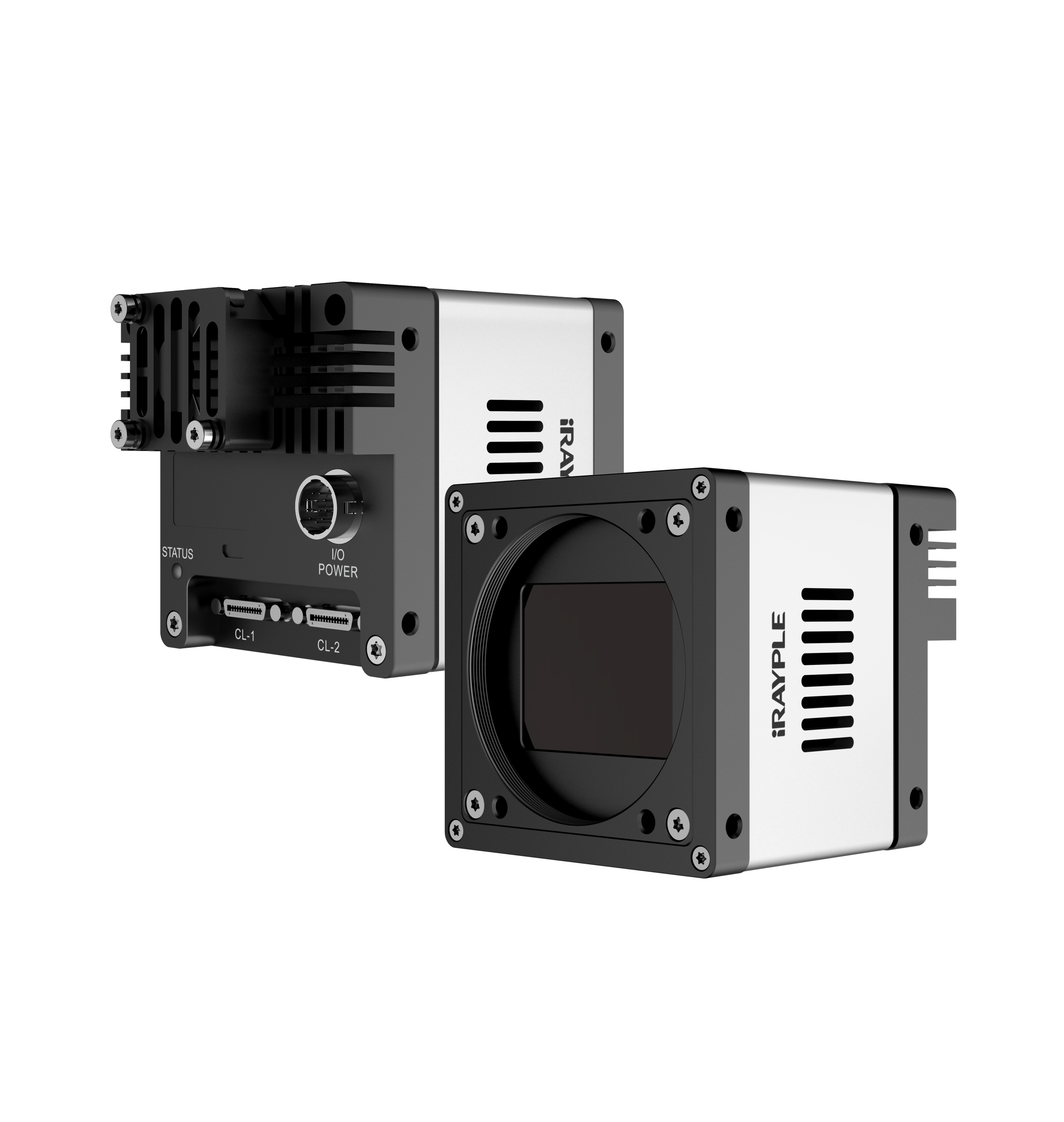

iRAYPLE Area Scan Camera, IMX342, 6464×4852, 11.6fps, Monochrome/Colour, Camera Link

  • Description
  • Additional information
  • Product Inquiry

Product Description

Features Include:

  • Sony CMOS sensor, global shutter, APS-C frame
  • A patented flatness mediation scheme to eliminate area defocusing
  • Excellent heat dissipation design, precise temperature control and constant temperature maintenance
  • Support Software Trigger/Hardware Trigger/Free Run Model, support trigger via CameraLink acquisition board
  • Support user-defined ROI, horizontal mirror and vertical mirror
  • Support ISP functions including Auto Exposure/Auto Gain/Gamma Correction/LUT etc.
  • Mono cameras support contrast adjustment
  • Support for FFC function to provide more uniform picture quality
  • Support mutil-frame average function, up to 16 frames averaging
  • Support fan speed adaptive function for setting the target temperature of the sensor
  • Conform to CameraLink protocol and GenICam standard
  • Support DC 24V power supply
  • Conform to CE, FCC, KC, RoHS

Downloads

AX7C10MK250E

Additional Information

Manufacturer

iRAYPLE

Actual Resolution

6480 x 4860

Output Format

Camera Link

Frame Rate (actual)

20 fps

Sensor Type

Area Scan
